Northeast Sweepers is the northeast exclusive distributer and dealer of the RAVO 5 iSeries street sweeper. We perform and manage sweeper sales, service, parts, and rentals.

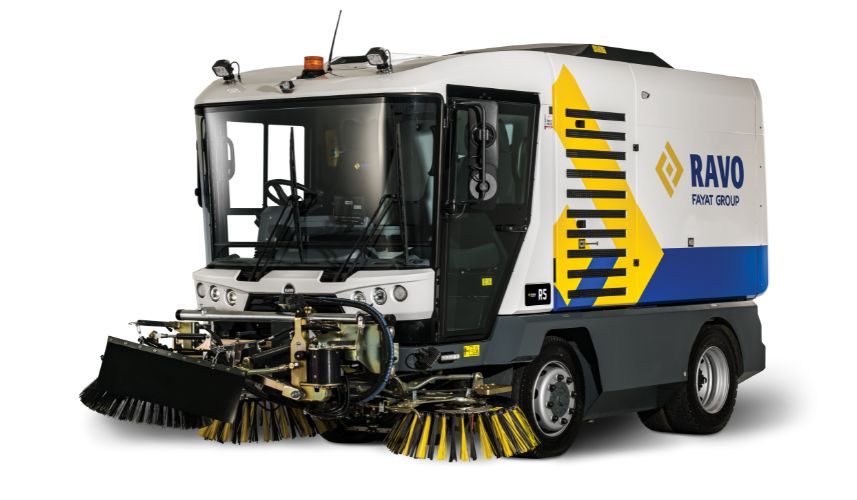

The RAVO 5 iSeries is the absolute best compact mid-size street sweeping machine in the world. Its robust and recognizable appearance has been a common sight in cities all around the world for many years. Every detail of the 5 iSeries was developed with one thing in mind: a clean street in one pass, no matter the season or conditions, urban or rural, sand or leaves, desert heat or artic cold, highways or bicycle lanes
Equipped with a Cummins Tier 4 final engine, an attractive cabin interior design and a state of the art intelligent sweeper monitoring system the 5 iSeries sets the benchmark in sweeping. The unmatched performance is the result of a pure vacuum suction line combined with RAVO’s unique broom system.
Vehicle Dimensions
Machine Weight: 13,110 lbs
Length: 178 “
Width: 95″
Turning radius: 199″
Suction System
4.7 x 24.8″ Corten steel suction nozzle and 8.9″ stainless steel suction tube with optional linatex lining available. At optimal rate, allows suction of 14,000 cfm.
Hopper Capacity
Stainless steel
Volume: 6.5 cu yd
Dumping Height: 3.3 ft
Payload: 12,125 lbs
Brush System
RAVO maintenance free pulling brush system with constant brush pressure that extends broom life by 50%. Maintenance friendly with no greasing points. 36″ diameter sweeping brooms
Optional: 3rd broom/weed cutter. Take control by maximizing your maneuverability.
Engine
Cummins QSF3.8 Diesel 4 Cyl. Maximum power: 138hp @2300 rpm
Fuel/ Water Tank
Capacity Fuel: 28 gal.
Capacity Water Tank: 160 gal.
The RAVO 5 iSeries is the absolute best compact mid-size street sweeping machine in the world. Its robust and recognizable appearance has been a common sight in cities all around the world for many years. Every detail of the 5 iSeries was developed with one thing in mind: a clean street in one pass, no matter the season or conditions, urban or rural, sand or leaves, desert heat or artic cold, highways or bicycle lanes
Equipped with a Cummins Tier 4 final engine, an attractive cabin interior design and a state of the art intelligent sweeper monitoring system the 5 iSeries sets the benchmark in sweeping. The unmatched performance is the result of a pure vacuum suction line combined with RAVO’s unique broom system.
Features
SPECS
Features
Every RAVO is standard equipped with –
An ergonomically designed cabin with adjustablesteering column, dashboard and arm rest. - Rear view and suction mouth camera.
- Air conditioning
- Air ride operator seat
- Stainless steel hopper with a volume up to 6.5 cu yds.
- Loading capacity of 12,125 lbs.
- Curb to Curb Maneuverablility
- Maintenance friendly and sustainable pulled broom system
- Up to 42% fuel saving
- Hydraulic front suspension with automatic leveling system
- 15 greasing points
- Sweeping in Reverse
Available sweeping attachments and options
SPECS
DIMENSIONS:
Machine weight: 13,110 LBS
Length: 178″
Width: 95″
Turning Radius: 199″
SUCTION SYSTEM
4.7″ X 24.8″ Corten steel suction nozzle and 8.9″ stainless steel suction tube with optional linatex lining available. at optimal rate, allows suction of 14,000 CFM
HOPPER CAPACITY
Stainless steel 6.5 cubic yards
Payload: 12,125 lbs
BRUSH SYSTEM
RAVO maintenance free pulling brush system with constant brush pressure that extends broom life by 50%. Maintenance friendly with no greasing points. 36″ diameter sweeping brooms.
Engine
Cummins QSF3.8 DIESEL 4 cyl.
Maximum Power: 138hp @ 2300 rpm
Setting Standards
An ergonomically designed cabin with adjustable steering column, dashboard, arm rest and lockable doors from inside. Air conditioning. A powerful IVECO or Cummins engine. Loading capacity of 5500 KG. Extreme maneuverability with a turning circle of only 5m (curb to curb). A unique pulled brush system. Constant brush pressure extends the brush life with 50%. Maintenance friendly.
Attractive & Comfortable
The cabin has been designed with the input of experienced international RAVO operators. When entering the cabin with a floor height of only 2.5 ft. Once seated in the air ride operator's seat the logical layout of the dashboard will amaze you. Add to that the fully adjustable armrest and steering wheel, the slightly tilted panoramic windscreen for ultimate visibility and you will agree the new standards have been set.
Designed to Fit
Produced according to the highest standards of quality, durability and performance. To assure you always have the right parts available for scheduled service we have composed various service and parts kits, it's that easy!
RAVO VERSATILITY
3RD BROOM
Lorem ipsum dolor sit amet consectetur adipiscing elit dolor
Increase the sweeping range and versatility when operating the RAVO 5 iSeries. An efficient way to clean pavements and road gutters. Equipped with a ‘quick release’ feature for easy removal or installation.
View
POROUS PAVEMENT CLEANER
Lorem ipsum dolor sit amet consectetur adipiscing elit dolor
Keep up with advanced storm water maintenance by using this RAVO 5 iSeries attachment on porous pavement in your community. Helps prevent clogging by pressure washing, loosening and vacuuming debris that is trapped in the pavement.
View
WANDERHOSE
Lorem ipsum dolor sit amet consectetur adipiscing elit dolor
Get the most out of street cleaning. The wander hose is perfect for sucking up leaves, and for emptying gutters and waste bins.
View
The RAVO 5 iSeries is the absolute best compact mid-size street sweeping machine in the world. Its robust and recognizable appearance has been a common sight in cities all around the world for many years. Every detail of the 5 iSeries was developed with one thing in mind: a clean street in one pass, no matter the season or conditions, urban or rural, sand or leaves, desert heat or artic cold, highways or bicycle lanes.
Equipped with a Cummins Tier 4 final engine, an attractive cabin interior design and a state of the art intelligent sweeper monitoring system the 5 iSeries sets the benchmark in sweeping. The unmatched performance is the result of a pure vacuum suction line combined with RAVO’s unique broom system.
Vehicle Dimensions
Machine Weight: 13,110 lbs
Length: 178 "
Width: 95"
Turning radius: 199"
Suction System
4.7 x 24.8" Corten steel suction nozzle and 8.9" stainless steel suction tube with optional linatex lining available. At optimal rate, allows suction of 14,000 cfm.
Hopper Capacity
Stainless steel
Volume: 6.5 cu yd
Dumping Height: 3.3 ft
Payload: 12,125 lbs
The RAVO 5 iSeries is the absolute best compact mid-size street sweeping machine in the world. Its robust and recognizable appearance has been a common sight in cities all around the world for many years. Every detail of the 5 iSeries was developed with one thing in mind: a clean street in one pass, no matter the season or conditions, urban or rural, sand or leaves, desert heat or artic cold, highways or bicycle lanes
Equipped with a Cummins Tier 4 final engine, an attractive cabin interior design and a state of the art intelligent sweeper monitoring system the 5 iSeries sets the benchmark in sweeping. The unmatched performance is the result of a pure vacuum suction line combined with RAVO’s unique broom system.
Vehicle Dimensions
Machine Weight: 13,110 lbs
Length: 178 “
Width: 95″
Turning radius: 199″
Suction System
4.7 x 24.8″ Corten steel suction nozzle and 8.9″ stainless steel suction tube with optional linatex lining available. At optimal rate, allows suction of 14,000 cfm.
Hopper Capacity
Stainless steel
Volume: 6.5 cu yd
Dumping Height: 3.3 ft
Payload: 12,125 lbs
Brush System
RAVO maintenance free pulling brush system with constant brush pressure that extends broom life by 50%. Maintenance friendly with no greasing points. 36" diameter sweeping brooms
Optional: 3rd broom/weed cutter. Take control by maximizing your maneuverability.
Engine
Cummins QSF3.8 Diesel 4 Cyl. Maximum power: 138hp @2300 rpm
Fuel / Water Tank
Capacity Fuel: 28 gal.
Capacity Water Tank: 160 gal.
Brush System
RAVO maintenance free pulling brush system with constant brush pressure that extends broom life by 50%. Maintenance friendly with no greasing points. 36″ diameter sweeping brooms
Optional: 3rd broom/weed cutter. Take control by maximizing your maneuverability.
Engine
Cummins QSF3.8 Diesel 4 Cyl. Maximum power: 138hp @2300 rpm
Fuel/ Water Tank
Capacity Fuel: 28 gal.
Capacity Water Tank: 160 gal.
